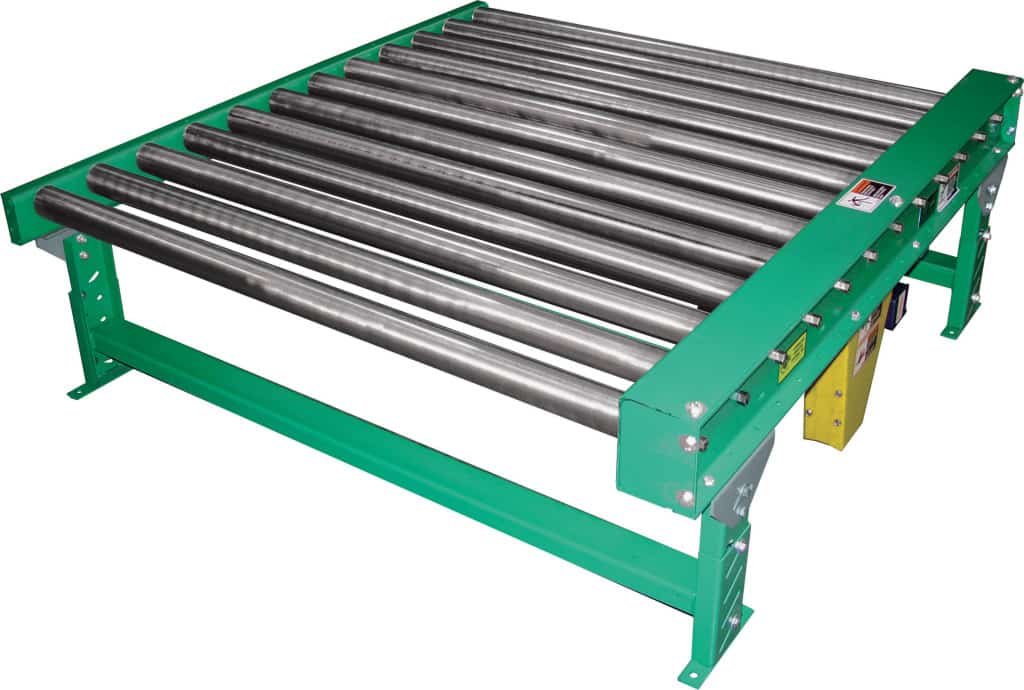

MODEL 251CRR/267CRR

Bed – Conveying surface width 28″, 34″, 40″, 46″, 52″, 58″, and 64″. 2-1⁄2″ diameter x 11 gauge and 2-5⁄8″ x 7 gauge steel tread rollers, 11⁄16″ hex shafts. No. 50 chain is used on 5″, 7-1⁄2″, 10″ roller centers only. No. 60 chain is used on 6″, 7-1⁄2″, and 12″ centers only. Tread rollers mounted in 4″ and 6″ x 4 gauge powder painted formed steel channel frame. Sections are bolted together with butt couplings and floor supports.

Drive Chain – No. 50 roller chain or No. 60 roller chain can be used with either the 251CRR or 267CRR as above.

Floor Supports – Heavy duty supports are adjustable 30-1⁄4″ to 40″ from floor to top of roller. One support at every bed joint and each end of conveyor.

Center Drive – Mounted underneath conveyor, center of section. Can be placed most any where in conveyor length.

Bearings – Sealed, pre-lubricated ball bearings.

Chain Guard – Lower chain guard is mounted on bottom of roller frame, and upper chain guard is mounted above roller frame to totally enclose drive chain.

Speed Reducer – C-Face mounted heavy duty worm gear reducer.

Motor– 3⁄4 HP 230/460-3-60 TE motor.

Speed – 30 FPM.

Capacity – Maximum load per linear foot of conveyor; 300 Ibs. with supports on 10′ centers, 1000 Ibs. with supports on 5’0″ centers.

Floor Supports – Lower or higher supports are available. Minimum elevation, 18″ from floor to top of rollers.

Side Mounted Drive – Motor-reducer unit can be mounted to side of conveyor frame. Drive is higher than conveyor frame. Minimum elevation to top of rollers is 7″.

Roller Set Low – 5”deep x 4 gauge non-driven side rail to provide 3⁄4″ high guard rail.

Motor - Single phase, energy efficient, explosion proof, etc. Other HP available.

Roller Speed - Constant and variable speeds available.

Electrical Controls – Magnetic starters and push button stations; manual motor starters with overload protection, others.
