MODEL 251CDA

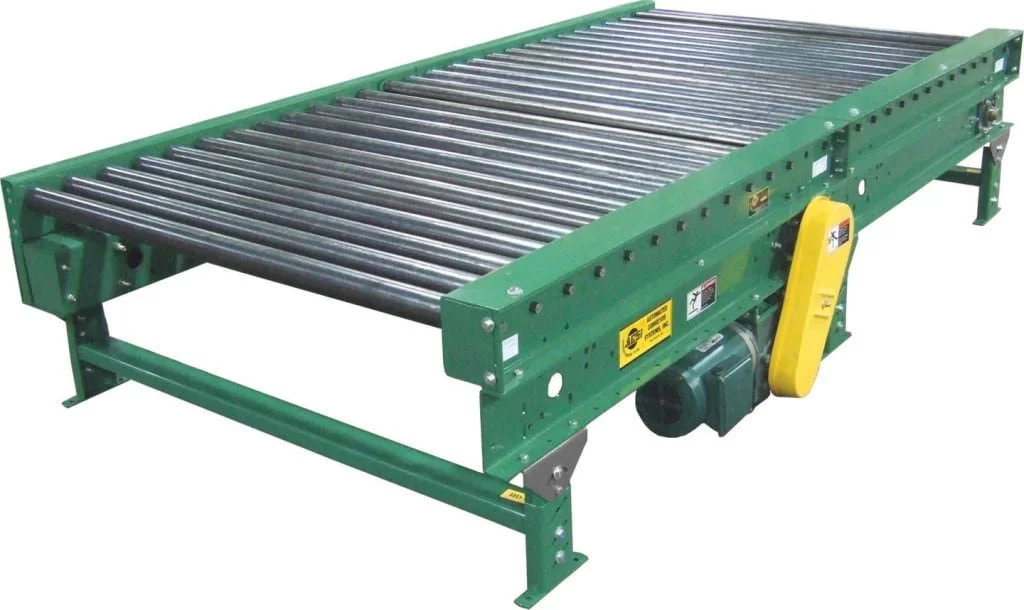

251CDA Heavy Duty Mechanical Chain Driven Pallet Conveyor

HEAVY DUTY MECHANICALLY CONTROLLED CHAIN-DRIVEN PALLET ACCUMULATING CONVEYOR

Applications / Features:

  • Zero Pressure Accumulation

  • Mechanically Operated

  • Heavy Duty Construction

  • Chain Driven Rollers

  • Zone Connections Outside Frame for Easy Installation

  • Frame – Heavy duty 12-1/2″ deep x 7 gauge powder painted formed steel channel with heavy duty cross braces. Frames are bolted with spice plates and floor supports.

    Rollers – 2-1/2″ diameter x 11 gauge steel rollers, grease packed and labyrinth sealed bearings, 11/16″ hex shaft. Rollers are spaced on 4″ or 6″ centers, set 7/8″ low.

    Floor Supports – Adjustable 25-5/8″ to 30-1/4″ (HD-4) from floor to top of roller, for each end of conveyor and at each bed joint along with knee braces for each support. Supports on 5 foot centers, change with zone length. Minimum elevation with standard drive location 24″.

    Drive – Located near center of conveyor length, underneath conveyor frame.

    Drive Chain – RC #40 for roller to roller connections, RC #60 chain drives each zone. Chains are totally enclosed by metal guards.

    Accumulation Zones – Standard zone lengths are 60″ long with a maximum of 30 zones per single drive

    Motor – 3/4 HP 230/460-3-60 TE motor.

    Electrical Controls – Input to a power supply.

    Conveyor Speed – 30 FPM constant roller speed.

    Speed Reducer – Heavy duty, sealed worm gear, C-Face.

    Bearings – Non-reversing sealed pre-lubricated with cast iron housing

    Capacity – Minimum unit load – 50 pounds. 4000 pounds maximum unit load.

  • Accumulation Zones – 4″ roller centers 36″, 40″, 44″, 48″, 52″, 56″, and 72″ long. 6″ roller centers 36″, 42″, 48″, 54″ and 72″ long. Frame lengths change with zone lengths.

    Tread Rollers – 2-5⁄8″ diameter x 7 gauge steel, 1⁄16″ hex shaft.

    Floor Supports – Higher or lower supports available, adjustable or fixed type.

    Side Mounted Drive – Drive unit mounted to side of conveyor in lieu of underneath conveyor frame. 14″ minimum elevation to the top of roller.

    Conveyor Speed – Constant and variable speeds between 10 and 70 FPM available.

    Limit Switch – To provide signal for customers infeed equipment.

    Time Delay – Allows for product to be unloaded from discharge zone of conveyor without immediate movement of next load into discharge zone.

    Motor – Single phase, energy efficient, explosion proof, etc. other HP available.

    Electrical Controls – Magnetic starters and push button stations; manual motor starters with overload protection, others.

    Optional Loads – Capacity available to 6000 Ibs. unit loads.

    Rollers Set High – Rollers set 1⁄4″ high above side rail. Frame is 11-3⁄8″ deep x 7 gauge formed steel channel.
