MODEL 22CRR

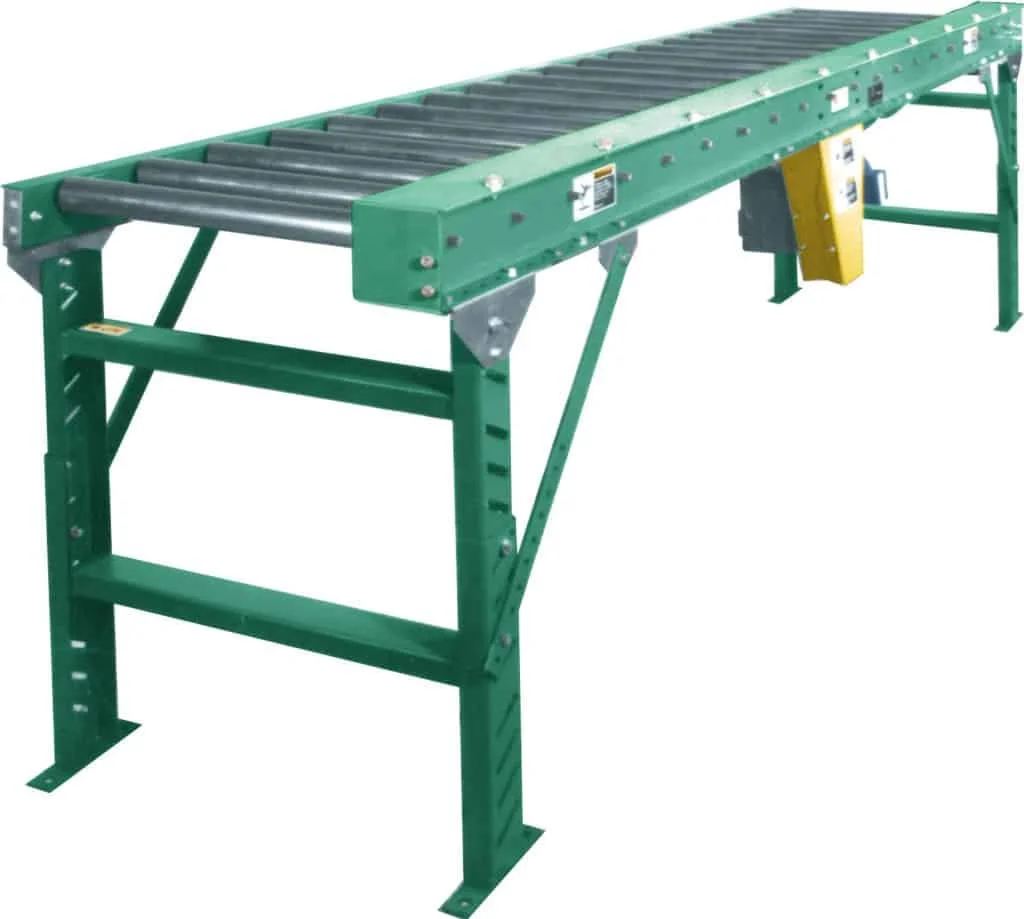

22CRR Medium Duty Chain Driven Live Roller Conveyor

MEDIUM DUTY CHAIN DRIVEN LIVE ROLLER

Applications / Features:

  • Wash Down Operations

  • Oily Conditions

  • Positive Drive-no Belt Slippage

  • Drive Chain – No. 40 roller chain on straight sections.

    Bed – Conveying surface width 14″, 16″, 18″, 24″, 28″, and 34″. 3-1/2″ x 1-1/2″ x 10 gauge powder painted formed steel channel on one side, 5″ x 1-1/2″ x 10 gauge formed steel channel on the chain drive side. Sections are bolted together with butt couplings and floor supports.

    Tread Rollers – 2″ diameter x 12 gauge steel with #40 sprockets welded to roller tube, 7/16″ hex shafts. Rollers spaced on 4″, 6″, 8″, and 12″ centers. Rollers are roller to roller driven.

    Chain Guard – Chainguard is mounted to the frame to totally enclose the drive chain.

    Center Drive – Mounted underneath the conveyor, near the center of the section. Can be placed almost anywhere in conveyor length. Specify.

    Floor Supports – Adjustable 28″ to 42″ from floor to top of rollers. One support is supplied at each end of the conveyor and at each bed joint.

    Speed Reducer – C-Face mounted heavy duty worm gear reducer.

    Motor – 1/2 HP 230/460/3/60 TE motor.

    Roller Speed – 60 FPM constant.

    Capacity – Maximum load 150 Ibs. per foot.

  • Guard Rails - Adjustable channel, continuous channel, or solid steel guard rails available.

    Floor Supports – Lower or higher supports are available. Minimum elevation 17-1⁄2″ from floor to top of rollers. Ceiling Hangers – 1⁄2″ diameter threaded rods 8 feet long with locking nuts and mounting hardware. Other lengths are available.

    Ceiling Hangers– 1/2″ diameter threaded rods 8 feet long with locking nuts and mounting hardware. Other lengths are available.

    Side Mounted Drive – Drive mounted to the side of the conveyor section. Specify side. Minimum elevation – 7″ from floor to top of rollers.

    Rollers Set Low – Tread rollers mounted low in 4-1⁄2″ x 10 gauge formed steel channel frame to form 3⁄4″ high guard rails.

    Motor – Single phase, energy-efficient, explosion-proof, etc. Other HP is available.

    Roller Speed – Constant and variable roller speeds are available.

    Electrical Controls – Magnetic starters and push-button stations; manual motor starters with overload protection, others.
