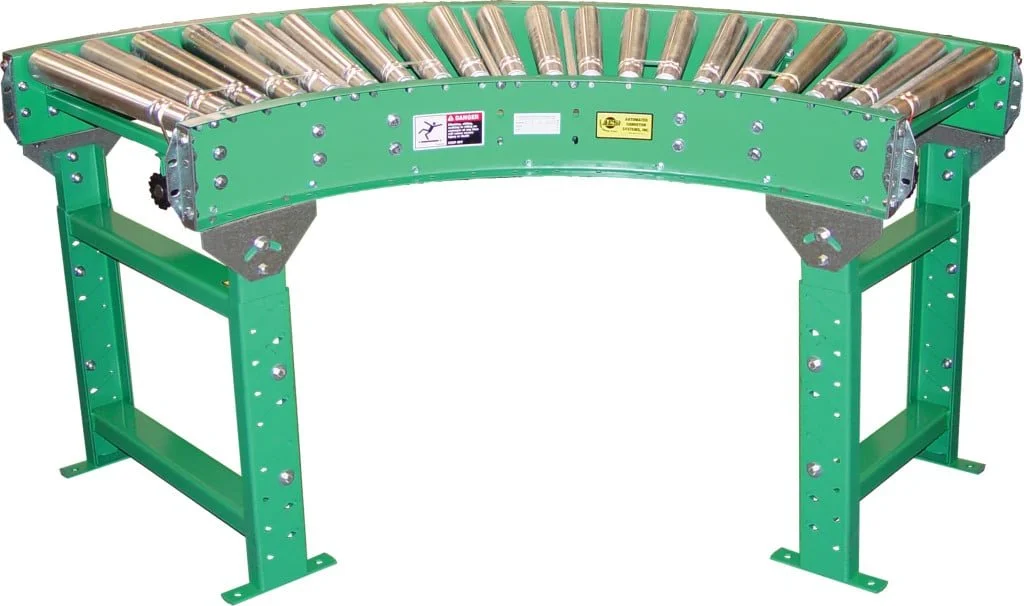

MODEL 190LSC / 190LSCS / 190LSS

Bed – Roller bed with 2-1⁄2″ diameter tapered to 1-11⁄16″ diameter x 14 gauge galvanized and 1.9″ diameter x 16 gauge galvanized tread rollers. Mounted in 7″ x 12 gauge powder painted formed steel channel frame.

Floor Supports – Adjustable 31-1⁄2″ to 45-1⁄2″ from floor to top of rollers. One support at ends of 190LSC (Curve), 190LSCS (Curve Spur) and 190LSS (Straight Spur). Single leg supplied for center of outside rail on 90° 190LSC only.

Slave Driven – Curves or spurs are slave driven from drive shaft of Model 190LS conveyor. Shafts are coupled by chain coupling at bed joints.

Drive Shaft – 1″ diameter steel shaft extends full length of conveyor, coupled with universal joints (“U” joints) at necessary intervals.

Drive Spools – 2″ diameter Delrin spool held in place on drive shaft with “snap-on” lock collars.

Drive Guard – Underside of drive shaft with spools and drive belts guarded full length of conveyor.

Drive Belts – 3⁄16″ diameter urethane belt from drive spool to tread roller.

Bearings – Tread rollers, pre-lubricated ball bearings. Sealed, pre-lubricated, self-aligning ball bearings on drive shaft.

Butt Couplings – Standard for connecting to 190LS.

Conveying Speed – Other constant and variable speeds from 30 to 120 FPM.

Guard Rails – Adjustable channel, continuous channel,steel guard rails available.

Floor Supports – Lower or higher supports available. Minimum elevation with standard drive mounting is 18″ to top of rollers.

Ceiling Hangers – 1 ⁄2″ diameter x 8’0″ long threaded rods with locking nuts and mounting hardware.
